Dynamics of a charge density wave in GdTe3

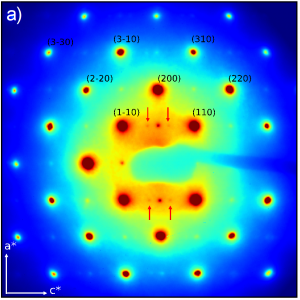

Figure: electron diffraction pattern obtained on a GdTe3 sample at T=155 K. The red arrows point toward satellite peaks that appear due to the lattice distortion in the broken symmetry phase, i.e. in the presence of the charge density wave.
Photo: Isabel Gonzalez performing an ultrafast diffraction experiment (photo by Jérémy Barande )

Our group has built an ultrafast electron diffraction experiment, allowing us to perform pump-probe experiments using a 50-100 keV electron bunch to probe the lattice of samples undergoing an ultrafast photoexcitation. The setup has a typical temporal resolution of 300 fs at best. This activity is relatively new and we have obtained results in model systems such as silicon. Recently, we have started to tackle more ambitious problems such as the study of the Charge Density Wave (CDW) phase transitions in more complex systems such as materials from the RTe3 family (R is a rare earth). We have been able to monitor the evolution of the phase transition on picosecond time scales. The results show that the CDW is destroyed in less than 1 ps following photoexcitation. More interesting, we find that the CDW state reforms with a time scale which depends on the temperature of the lattice. The recovery time of the CDW becomes longer as the lattice temperature approaches the critical temperature Tc, an effect reminiscent of “critical slowing down” in thermodynamic phase transitions.

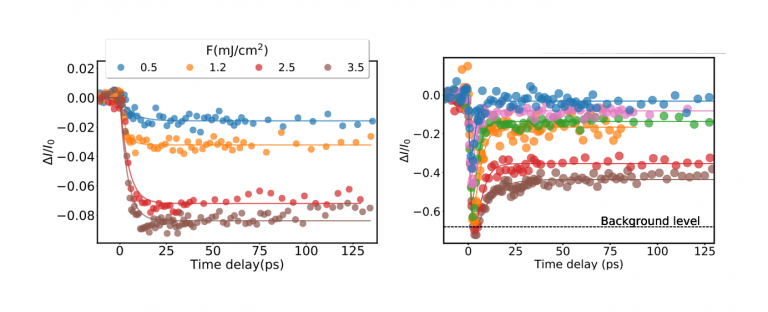

Figure: Dynamics of the CDW in GdTe3. Left: relative intensity changes of the main Bragg peaks as a function of pump-probe delay. Right: relative intensity changes of the satellite peaks. The various colors correspond to different laser fluences. The abrupt decrease of the satellite peaks below the detection threshold indicates the destruction of the CDW state.

Related publications:

“Time-resolved structural dynamics of the out-of-equilibrium charge density wave phase transition in GdTe3”, I. Gonzalez-Vallejo et al., submitted (2020)


Observation of large multiple scattering effects in ultrafast electron diffraction on single crystal silicon”; I Gonzalez Vallejo, G. Gallé, B. Arnaud, S. A. Scott, M. G. Lagally, D. Boschetto, P.-E. Coulon, G. Rizza, F. Houdellier, D. Le Bolloc’h and J. Faure, Phys. Rev. B 97, 054302 (2018)
